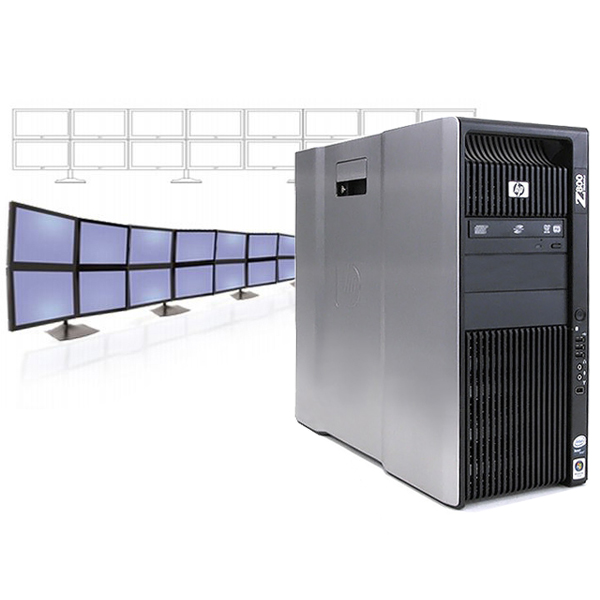

Workstation - A desktop computer terminal, typically networked and more powerful than a personal computer; It is often used for Displaying an overview or specific focal view of the installed Building automation, ELV or security system’s health, functions and operational progress. It allows the facility manager to passively monitor or actively control the system.

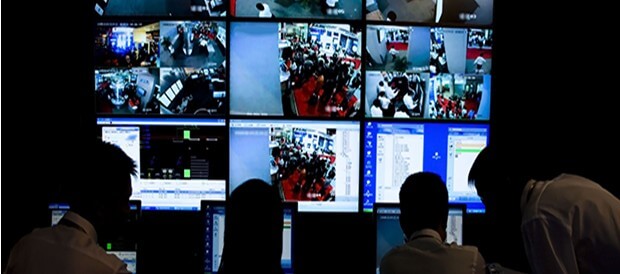

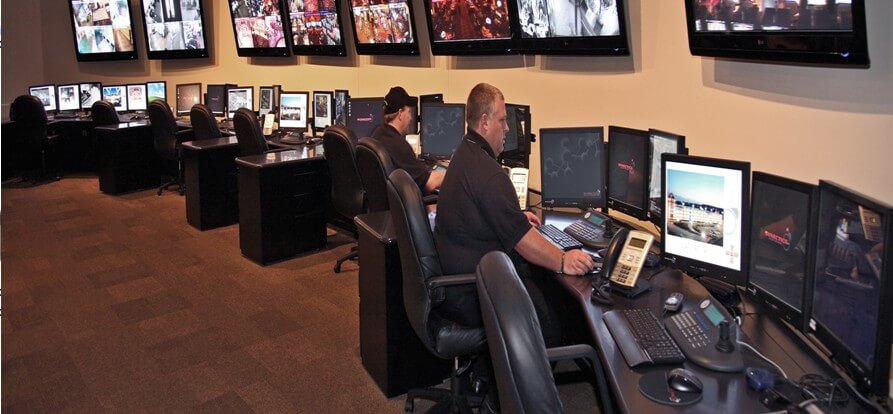

The workstation is the heart of the surveillance control Room. Separate workstations PC/Display are often designated to monitor specific areas continuously.
Display / Monitor - A computer monitor or a computer display is an electronic visual display for computers. A monitor usually comprises the display device, circuitry, casing, and power supply. The display device in modern monitors is typically a thin film transistor liquid crystal display (TFT-LCD) or a flat panel LED display, while older monitors used a cathode ray tubes (CRT). It can be connected to the computer via VGA, DVI, HDMI, Display Port, Thunderbolt, LVDS (Low-voltage differential signaling) or other proprietary connectors and signals.

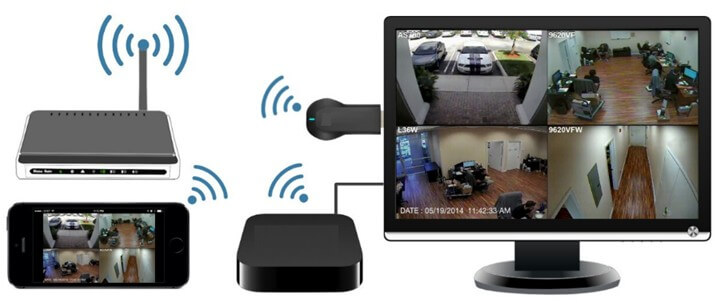

For selective/small scale surveillance: Smart Phone screens can be used once there are linked to the NVR.

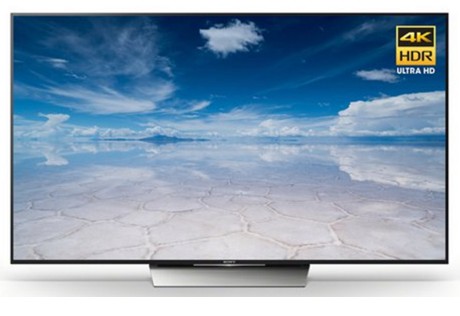

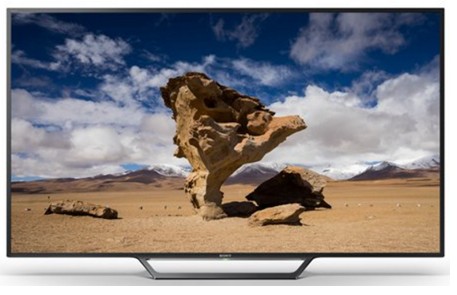

For Large scale surveillance; TV screens can be used as display monitors.
Dell Products include the following –
• Workstation –
New XPS Tower
Innovation you can expand on.
The XPS Tower is a series of products built to grow with you. The functional design features big power and an easy-open chassis for simple expandability.
Tackle any job with efficiency and power as you step into Dell's XPS product with this 6th Gen Intel® Core™ i5 processor and NVIDIA® GeForce® GTX 730 graphics card.
H170 or Z170 with Intel K CPUs only (some features of Z chipset not supported, including dual graphics)
Exterior Chassis Materials
Molded plastic / Sheet Metal
Dell Multimedia Keyboard – Black
Dell Laser Scroll USB 6-Button Silver and Black Mouse
Up to 4 total 3 HDD/1 SSD; ODD
4 PCIe expansion slots (x1, x1, x4, x16)
4 DIMM slots (supports up to 64GB)
Height: 15.22” (386.5mm)
Width: 7.09” (180mm)
Depth 14.02” (356mm)
Weight: 22lbs (10Kg)
4 USB 3.0 Ports
1 SD Card Reader (SD, SDHC, SDXC)
3 USB 3.0 ports
1 USB 3.1 port
2 USB 2.0 ports
1 USB 3.1 Type-C port
1 Display Port
1 Gigabit Ethernet
1 Audio ports (5.1 channel (3 Jack)
• Displays / Monitors

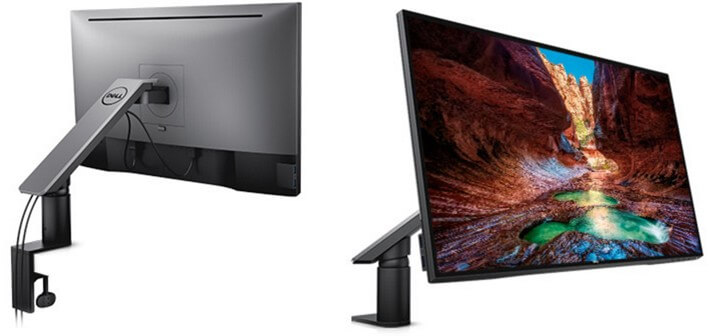

Dell UltraSharp 27 Monitor with Arm creates a more flexible viewing experience with outstanding color precision.
Optimize your view: Feast your eyes on the thinnest borders to ever to grace all four sides of a monitor. Dell’s InfinityEdge borders, which include the bezel width and inactive black space, create an almost seamless viewing experience. With 7.3mm top, left, and right sides and a bottom border measuring only 8.4mm.
A more accurate display: With our factory color calibration report, you’re guaranteed to see accurate colors with 99% sRGB color coverage at deltaE
Stunning at every angle: Colors remain consistent across an ultrawide viewing angle, guaranteeing a dazzling display no matter how you view it.
Witness the difference: See more with 1.77 times the screen details on QHD resolution than Full HD.
A more appealing solution: Eliminate cable clutter with the integrated cable management system and with matching ID between arm and monitor
Fully adjustable: Enjoy greater viewing flexibility and comfort with versatile adjustability options on the single monitor arm.

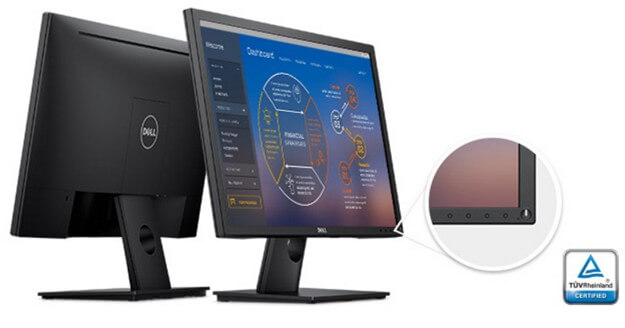

A 23.8" display with an ultrawide viewing angle, an environmentally conscious design and rigorous reliability testing define the Dell 24 Monitor – E2417H.
Screen performance: View your applications, spreadsheets and more on 23.8 inches of 1920 x 1080 Full HD clarity.
Work comfortably: Optimize eye comfort and reduce harmful blue light emissions with ComfortView and a flicker free screen.
Brilliant at every angle: See consistent colors across an ultrawide 178°/178° viewing angle with in-plane switching technology.
Convenient controls: Easily access buttons for power, brightness, contrast and customizable preset modes on the monitor’s front panel.
Versatility included: Get the flexibility to configure your monitor with various mounts and stands for evolving office requirements.
Tilt at will: Work comfortably by tilting the monitor 5° forward or 21° backward.
Plug and view: The monitor is compatible with most legacy and current PCs via VGA and DisplayPort connectivity.
Work comfortably: Optimize eye comfort and reduce harmful blue light emissions with ComfortView

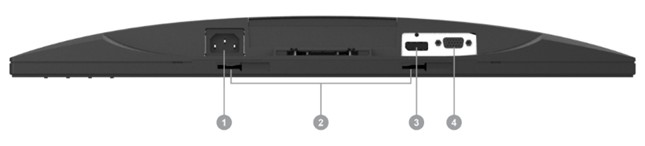

Ports and Slots:
1. Power cable connector
2. Sound bar mounting slots
Display Port (DP) Cable
DELL’s INFINITY EDGE -

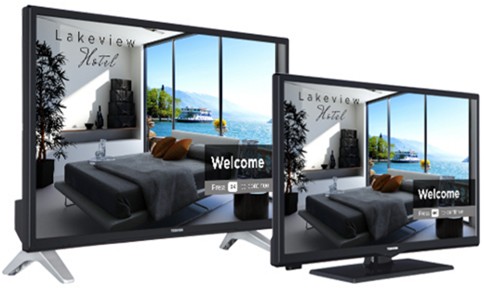

Toshiba’s business display Solution –
Toshiba's TD-H3 series is customized to keep you in control.
It’s features include:
The capacity to receive broadcasts from a variety of sources.
LAN control facility
Effortless operation even from remote locations.

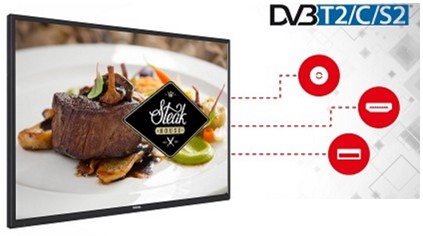

Displays in Toshiba's TD-H3 series feature
DVB-T2/C/S2 tuners (model-dependent),
This enables them to receive broadcasts from many different sources.
Designed to work with a range of connections and inputs
They also support a variety of content playback scenarios,
External PC software enables you to customise and manage the user interface
Tiling connectivity allows you to link multiple displays.
