CCTV


CCTV is a TV system in which signals are not publicly distributed but are monitored, primarily for surveillance and security purposes.

The system relies on strategic placement of cameras, and observation of the camera's input on monitors somewhere. Because the cameras communicate with monitors and/or video recorders across private coaxial cable runs or wireless communication links, they gain the designation "closed-circuit" to indicate that access to their content is limited by design only to those able to see it.

Older CCTV systems used small, low-resolution black and white monitors with no interactive capabilities. Modern CCTV displays are based on digital cameras on an IP network providing video in color, high-resolution displays and can facilitate the ability to zoom in on an image or track something (or someone) among their features.

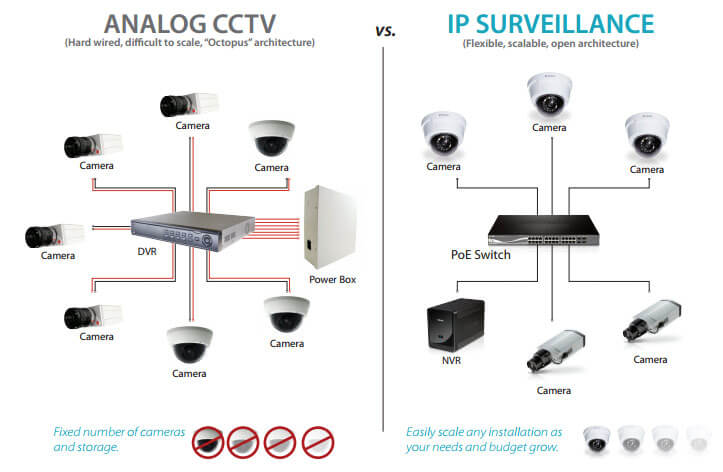

Analog-cctv

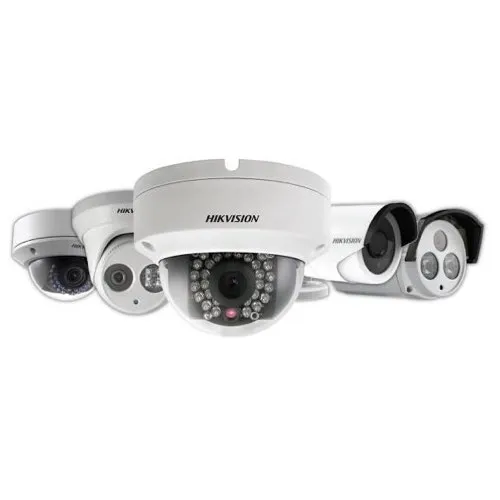

Red Fox Systems Cameras include:

  • Analog cameras ( - Cameras on a modern analog CCTV system send their video in the traditional base band format over coax or UTP cabling back to a digital video recorder (DVR). Here, video is digitized and stored on hard drives. Most modern DVRs are a network device, and as such can be accessed remotely from the LAN, or with the proper configuration, from across a WAN or the internet. They are comparatively lower cost and have superior compatibility – It is much easier to mix and match cameras and incorporate existing camera equipment into older surveillance systems if you use analog versions.
  • Digital IP cameras - IP video cameras broadcast their video as a digital stream over an IP network. Like an analog system, video is recorded on hard drives, but since the video is an IP stream straight from the camera, there is more flexibility as to how and where that video is recorded. The DVR is replaced with an NVR (network video recorder), which in some cases is just software since it doesn't need to convert analog to digital. Other benefits include high resolution and wireless surveillance.
  • PTZ (Pan, Tilt, Zoom) cameras - A PTZ camera is a camera with pan, tilt, and zoom functionality. These movements can be manually controlled by using monitoring software or a joy stick, or automatically set up using camera management software. Being able to move the camera necessary by a security guard allows your security staff to respond quickly to events they spot with the surveillance system.

How PTZ Works?

Panning - The camera can swivel to the left and right, allowing it to have a wide area of coverage. Pan can range from a complete 360 circle to smaller areas.

Tilting -The camera can tilt up and down, giving wide vertical range of coverage. The amount of tilt will vary by camera model, but it goes up to 180 degrees.

Zooming - Optical zoom physically adjusts the camera lens, changing the focal length to zoom in and out; this allows the camera to maintain image quality. The amount of optical zoom is expressed as #x, such as 18x, and represents how much the camera can zoom (change the lens focal length)Digital zoom increases focus magnification of the image area using software, often resulting in pixilated images when zoomed too far.

CCTV TECHNOLOGY


Bosch
From the very beginning, the BOSCH company‘s history has been characterized by innovative drive and social commitment throughout its 130 years of experience.

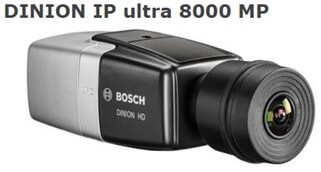

BOSCH CAMERA TECHNOLOGY INCLUDES THE FOLLOWING:

BOSCH
TYPE PTZ FIXED DOME PANORAMIC HD/MP FIXED

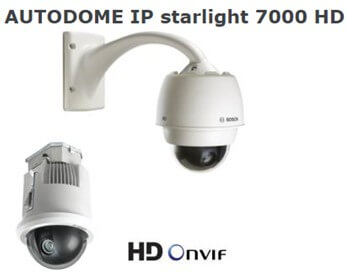

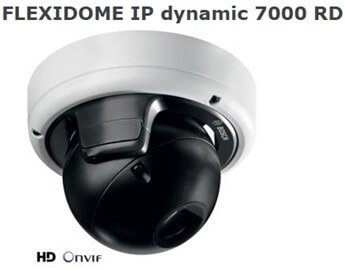

CAMERA Autodome IP Starlight Flexidome-IP-dynamic Flexidome-IP-panaromic Dinion-ip-ultra

DEMONSTRATION VIDEOS

  • BOSCH CAMERA DATA SECURITY


  • BOSCH CAMERA RANGE & APPLICATION
Hikvision
Featuring the industry’s strongest R&D workforce, Hikvision uses its state-of-the-art facilities to design & develop innovative CCTV products.

HIKVISION CAMERA TECHNOLOGY INCLUDES THE FOLLOWING:
Hikvision

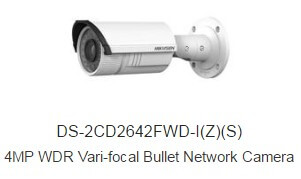

NETWORK BOX Fixed Bullet Fixed Dome Mini Dome EXIR Vari - Focus
Cameras Box-camera Fixed-bullet Fixed-dome Mini-dome EXIR-camera Vari-focus-camera

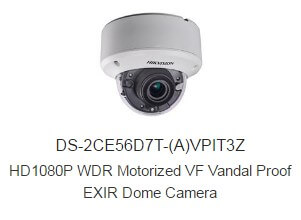

ANALOG DIS & PICADIS Turbo HD CCD HD - SDI
Cameras dis-picadis       turbo-HD CCD HD-SDI
PTZ DF-line Network smart PTZ DE-line Network smart PTZ AE-line Turbo HD PTZ AE-line Analog PTZ
Cameras DF-line       DE-line AE-line AE-line-analog

DEMONSTRATION VIDEOS

  • HIKVISION Turbo HD


  • HIKVISION 4K
  • HIKVISION H.264
Howen
Howen Technologies Co. Ltd., was established in 2008 and dedicated to R&D, manufacturing and sales. After several years' fast growth, Howen became the leading supplier and solution provider in China. Since then, Howen's products and systems have been widely used in more than 50 countries such as UK, USA, Canada, Australia, South Africa, Nigeria, U.A.E, Qatar, India and Brasil,etc.

HOWEN IP CAMERA TECHNOLOGY INCLUDES THE FOLLOWING:
Howen
TYPE / MODEL 2MP IK10 IP bullet camera
Hero-N82JC5B32-2M-EIR
2MP IK10 Vandal proof IP dome camera
Hero-N82JC5D20-2M Series
Fisheye 6Mp IP camera
Hero-N85JC4D21-6M-EIR
Hero-SD10N-XC3P4 series
IP PTZ Dome Camera
CAMERA
HD-outdoor
HD-vandal
HD-vandal02
IP-camera
CAMERA
  • 1/2.9" Progressive Scan CMOS
  • VF Lens 2.8-12mm
  • Full HD 1080P
  • Multiple Streams
  • Multi-cast
  • IR Range 30-40m
  • Low bitrate, Excellent low light performance
  • IK10 vandal proof
  • IP66 water proof
  • 1/2.9" Progressive Scan CMOS
  • VF Lens 2.8-12mm
  • Full HD 1080P
  • Multiple Streams
  • Multi-cast
  • IR Range 15-20m
  • Low bitrate, Excellent low light performance
  • IK10 vandal proof
  • IP66 water proof
  • 1.6mm lens, 360 degree fisheye view
  • 1/1.8" Progressive Scan CMOS
  • 6MP Resolution
  • Unique De-warping Image
  • Low bitrate , Excellent low light performance
  • 3D DNR, dWDR, ICR, HLC
  • IR Range 10m
  • Smart IR
  • Built in 20x optical zoom 1.3M CCD block camera
  • Max. Resolution up to 1280*960(960P@30fps) IR vision range up to 120m.
  • 360°pan continuously rotation, upward angle (-60°~+90°), without blind spots.
  • Supports auto-cruise, horizontal scanning, the camera mode, title displays.
  • Supports H.264 and M-JPEG video compression
  • IP66 Weather Proof and Vandal-proof Metal housing
  • 4000V lightning protection
  • High die-cast aluminum casing, anti-shock, and anti-erosion.
Milesight
Milesight is a professional high-tech enterprise specializing in the design and manufacture of best-in-class IP surveillance cameras with superior image quality, exceptional flexibility and reliability for the global market.

MILESIGHT IP CAMERA TECHNOLOGY INCLUDES THE FOLLOWING:
Milesight

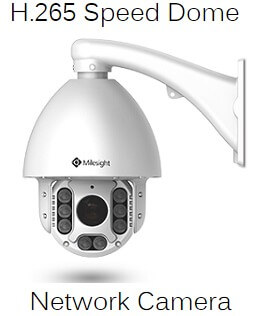

CATEGORY H.265 In-Sight PTZ I - View
CAMERAS
network-camera
network-camera01
network-camera02
network-camera03
Description Equipped with the IP67-rated & IK09-rated housing, H.265 Mini Dome is apt for outdoor surveillance, withstanding harsh climatic and high impact force. Incorporating latest IR LEDs, Ultra Low-light and Super WDR, the camera is able to provide superior image quality around the clock. Equipped with motorized zoom lens, the latest IR LEDs and P-iris control technology, the camera delivers outstanding video performance. The PTFE membrane is applied to increase the air flow in order to prevent fogging. Also, It is special for the integrated cable management bracket. Designed for high-performing surveillance, Milesight Speed Dome Camera offers 30x optical zoom, fast and precise pan/tilt performance for wide area coverage and great detail when zooming in. It also features PTZ Motion and 3D Positioning technology to offer unique possibility to monitor specified area and provide sharp images in all directions. It is redefining what you should expect for a mini dome camera. With the built-in IR LED module, it makes visibility in total darkness. Based upon the E-PTZ function, it still delivers excellent image details after multiple enlargements.

DEMONSTRATION VIDEOS

  • MILESIGHT STARLIGHT VIDEO DEMO


  • MILESIGHT SUPER WDR VIDEO DEMO
Nature
Japan NATURE (株式会社 ネエチア) was founded in 1972; with headquarter in Tokyo, Japan. As a professional security manufacturer, it has over 40 years of history. NATURE has achieved “ISO 14001 International Environmental Baseline" Certification in Sep, 2000.

NATURE CAMERA TECHNOLOGY INCLUDES THE FOLLOWING:
Nature
CATEGORY IP Box IP Indoor Dome IP Outdoor Dome IP Bullet IP PTZ Analog
CAMERA
IP_box-camera
IP-indoor-dome
IP-outdoor-dome
IP-bullet-camera
IP-PTZ
nature-analog
Description
  • H.265/ H.264/ M-JPEG, Support Multiple Code Stream
  • Built-in Auto Double Filter Switching Mechanism, True Day/Night
  • Support ONVIF, 3D-MCTF DNR and the ROI Compression Interested Area
  • Support Corridor Mode, Adapt to the Special Area Show in Long and Narrow Corridor
  • The Power Interface using Error Prevention Design, Avoid Mistaken Insertion or Reverse Damage to the Camera Circuit.
  • Support HDMI Output, DC12V/AC24V/POE
  • Starlight Low Illumination,H.265/H.264/M-JPEG, Support Multiple Code Stream
  • HDTV, Support 5 MEG Full Real-Time Transmission
  • Support ONVIF, Built-in Auto Double Filter Switching Mechanism, True Day/Night
  • Support 3D DNR, Mobile Surveillance
  • Support WDR, DC12V(AC24V/ POE Optional)
  • Starlight Low Illumination
  • H.265/H.264/M-JPEG, Support Multiple Code Stream
  • HDTV, 5MP Full Real Time Transmission
  • Support ONVIF, Built-in Auto Double Filter Switching Mechanism, True Day/Night
  • Support 3D DNR, Mobile Surveillance, Vandal-proof IK10, Weatherproof IP66
  • Support WDR, DC12V(AC24V/ POE Optional)
  • Ultra-Low Light, Low Illumination
  • H.265/ H.264/ M-JPEG, Support Multiple Code Stream
  • HDTV, 5MP Full Real time Transmission
  • Support ONVIF, Built-in Auto Double Filter Switching Mechanism, True Day/Night
  • Support 3D DNR, Mobile Surveillance, IR 50M&4pcs Array IR LED, Weatherproof IP66
  • Support WDR, DC12V(AC24V/POE Optional)
      Ambarella + Sony High-performance Video Process Sensor;

  • Built-in ICR Day&Night Switch, Recover true image in Daytime, Low Noise in Night;
  • 3D-MCTF DNR & ROI Specified Area Compression;
  • Customizable Working Conditions With Different Image Specification, Auto Switch As Planned;
  • Digital WDR, Qualified Image Under Low-Light or Strong Chiaroscuro Scene;
  • DEFOG, Suitable for Working under Fog, Haze, Rain and Other Adverse Weather Condition;
  • Anti-shake, Suitable for Outdoor Equipment Jitter Situation Causing by Wind, etc
  • Micro SD/SDHC/SDXC Card Slot, up to 64GB;
  • Support ONVIF, IP66;
  • low illumination, Color 0.1 Lux, B/W 0Lux(IR ON)
  • Auto Realize Color to B/W, Day/Night Surveillance, Auto BLC
  • Support Auto White Balance, Adapt to Different Surveillance Environment
  • IR 30M, Weatherproof IP66

DEMONSTRATION VIDEOS

  • NIGHT MODE:


  • DAY MODE:
Uniview
Uniview is one of the largest players in the video surveillance market of China. In 2015, Uniview had the 8th largest global market share.

UNIVIEW NETWORK CAMERA TECHNOLOGY INCLUDES THE FOLLOWING:
Uniview
CATEGORY BOX BULLET FIXED DOME PTZ DOME
CAMERA
uniview-camera

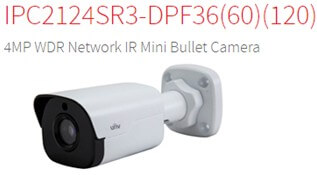

uniview-bullet-camera
uniview-dome-camera
uniview-PTZ-camera
Description Optics
    • Auto day/night functionality
    • 3D DNR (Digital Noise Reduction)
    • Optical Defog & Digital Defog
Compression
    • H.265, H.264, MJPEG
    • Embedded smart algorithm
    • 4000 * 3000 Resolution Supported
    • Triple streams
    • ROI (Region of Interest)
    • 9:16 corridor format
Network
    • Optional network interfaces with Ethernet RJ45 and optical SFP
    • ONVIF Conformance
Structure
  • AC 24V /DC 12 V/PoE with uninterruptible power supply
  • Wide temperature range: -20°C to 60°C (-4°F to 140°F)
  • Wide voltage range of ±25%
  • 6 KV surge protection designed for network interface
Optics
    • Day/night functionality
    • Smart IR , up to 30 m (98 ft) IR distance
    • Optical glass window with higher light transmittance
    • IR anti-reflection window to increase the infrared transmittance
    • 3D DNR (Digital Noise Reduction)
Compression
    • H.265, H.264, MJPEG
    • Embedded smart algorithm
    • Triple streams
    • 9:16 corridor format
Network
    • ONVIF Conformance
Structure
  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP66
Optics
    • Ultra wide angle lens, 360°panoramic image
    • Embedded infrared light, 360°fill-in light, Up to 20 m (65 ft) IR distance
    • 3D DNR (Digital Noise Reduction)
Compression
    • 4K, Max. 4000 * 3000 resolution
    • Built-in microphone & speaker, two-way talk supported
    • Sextuple streams
    • ROI (Region of Interest)
    • Distortion correction supported
Network
    • ONVIF Conformance
Structure
  • Support PoE power supply
  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IK10
  • IP66
Optics
    • Accurate and fast focusing
    • 22x optical zoom
    • Fourth-generation infrared technology, more than 150m (492ft) IR distance
    • IR anti-reflection window to increase the infrared transnittance
    • Optical glass window with higher light transmittance
    • Smart IR
Compression
    • 4000×3000 resolution supported
    • H.264 High Profile
    • Triple streams
    • Customized OSD
Network
    • Network auto-adaptability
    • ONVIF Conformance
    • Https security supported
    • RTSP access authentication
    • ARP binding
    • ONVIF Conformance
Structure
  • Special structure and window design to battle bad weather (especially in dusty weather)
  • Innovative snow-removing functionality
  • Intelligent temperature control technology
  • More effective heat dissipation system
  • 6 KV surge protection designed for network interface

DEMONSTRATION VIDEOS

  • UNVIEW PRODUCT RANGE VIDEO


  • UNIVIEW StarView DEMONSTRATION
Mobotix
MOBOTIX is known as an innovative producer of smart and autonomous IP cameras since the year 2000.

MOBOTIX IP CAMERA TECHNOLOGY INCLUDES THE FOLLOWING:
Mobotix
CATEGORY Dome D25 Hemispheric Q25 DualDome D15 Vandalism V15
CAMERA
Mobotix-dome
Mobotix-hemispheric
Mobotix-dualdome
Mobotix-vandalism
Description
  • Elegant dome camera with exchangeable lenses from telephoto to wide-angle lens
  • Numerous installation options both outdoors or indoors
  • 6MP Moonlight Technology for detailed images and smooth video streams even in dark surroundings
  • Integrated DVR for long-term recording without network load
  • Robust, low-maintenance and weatherproof device with no moving parts (IP65)
  • Digital continuous pan, tilt and zoom function
  • Intelligent movement sensors (MxActivitySensor)
  • Can be expanded into an intercom using the MOBOTIX ExtIO module
  • High-resolution widescreen panorama from wall to wall, ideal for access control
  • Integrated DVR for long-term recording without network load
  • Digital continuous tilting, panning and zooming without mechanically moving the camera
  • Robust and low maintenance with no moving parts
  • Newest MOBOTIX 6MP Moonlight Technology with up to 30 fps and improved zoom
  • Microphone, speaker, MxBus and intelligent movement sensors (MxActivitySensor)
  • Optimized image quality and reduced motion blur even in poor lighting conditions
  • Two lenses, two HiRes image sensors,
  • internal storage
  • dual image of maximum 12.5 megapixels
  • You can secure two different areas with just one camera,
  • All without vulnerable mechanical components

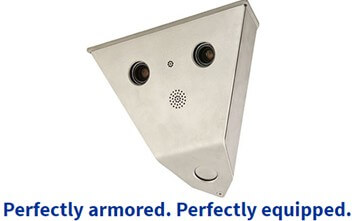

V15 – perfectly protected against vandalism:

  • Bulllet-proof IP dual camera for corner mounting
  • Operational at temperatures from -30 to +60 °C (-22 to +140 °F) (IP65)
  • Cost-efficient PoE power supply via network cable
  • Front plate and cover made from 5 mm stainless steel
  • 6MP image sensors with Moonlight Technology for day and night (color and B/W)
  • Image angels of 90° and 45°
  • Automatic day/night switch
  • Two-way communication via integrated microphone and speaker
  • MxActivitySensor for intelligent motion detection
  • MicroSD card slot, 4 GB pre-installed
  • MxBus und MiniUSB connections for interface boxes

DEMONSTRATION VIDEOS

  • MOBOTIX 360 degree View


  • MOBOTIX Durability
